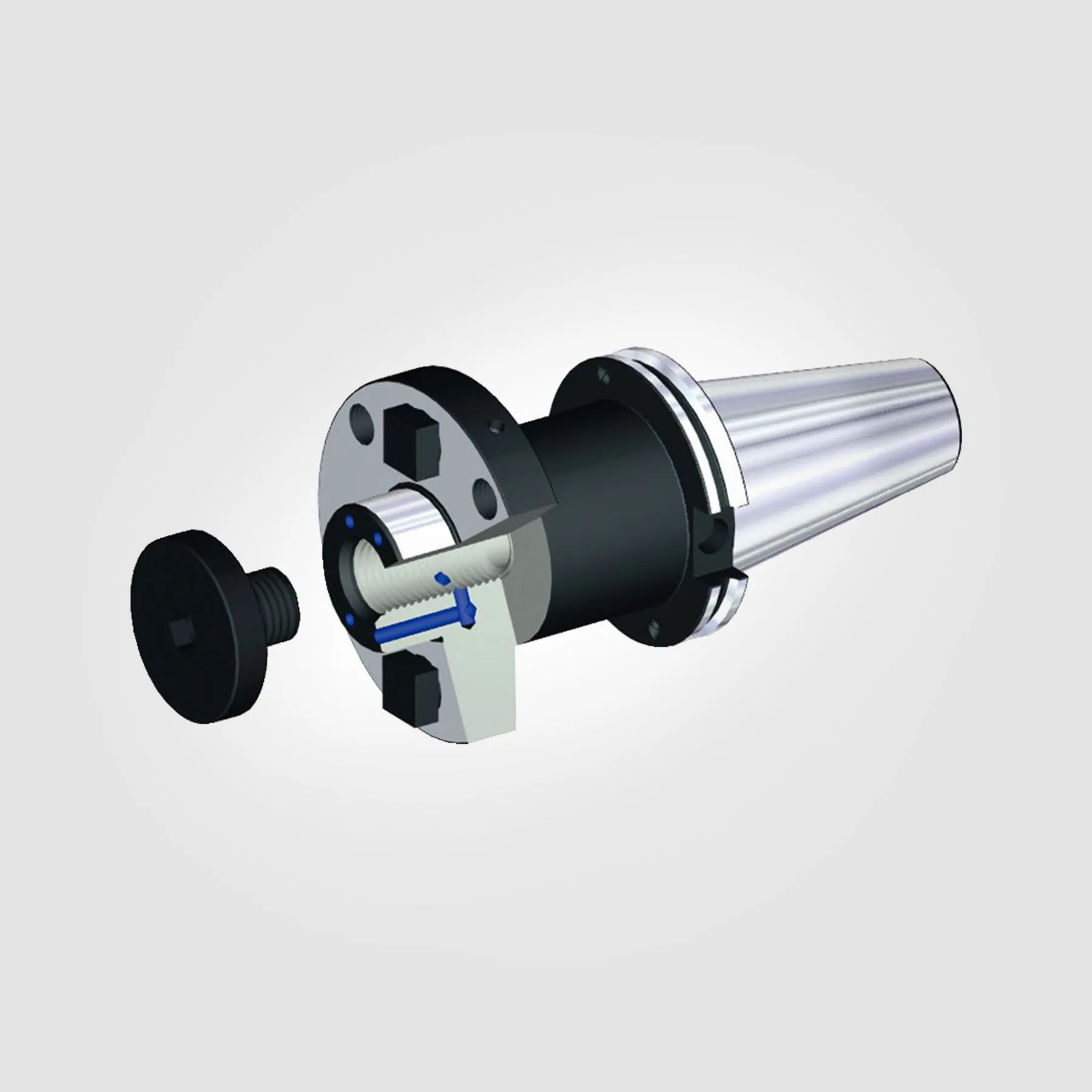

CV50 Steep Taper 1.250" Shell Mill Adapter (THROUGH COOLANT) 3640214

• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

• Adapter Type: Steep Taper
• System Size: CV50

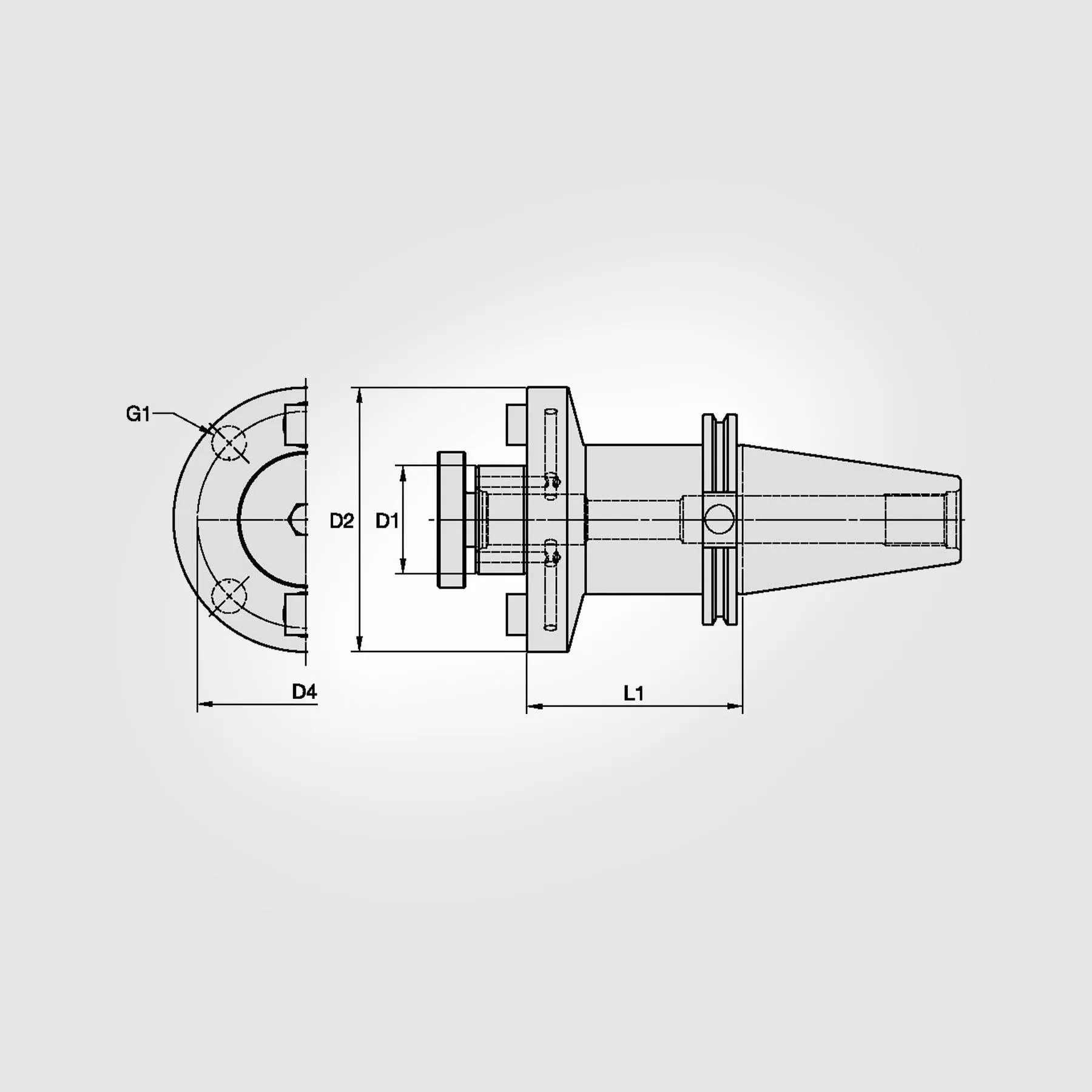

• [D1] Adapter Diameter (Inch): 1.250"
• [D1] Adapter Diameter (Metric): 31.700mm
• [D2] Body Diameter (Inch): 2.880"
• [D2] Body Diameter (Metric): 73.100mm
• [L1] Gage Length (Inch): 7.000"
• [L1] Gage Length (Metric): 177.800mm
• [L] Overall Length (Inch): 11.688"
• [L] Overall Length (Metric): 296.880mm
• [L2] Usable Length (Inch): 6.250"
• [L2] Usable Length (Metric): 158.750mm
• Through Coolant: Yes
• Coolant Entry Style: Flange & Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
