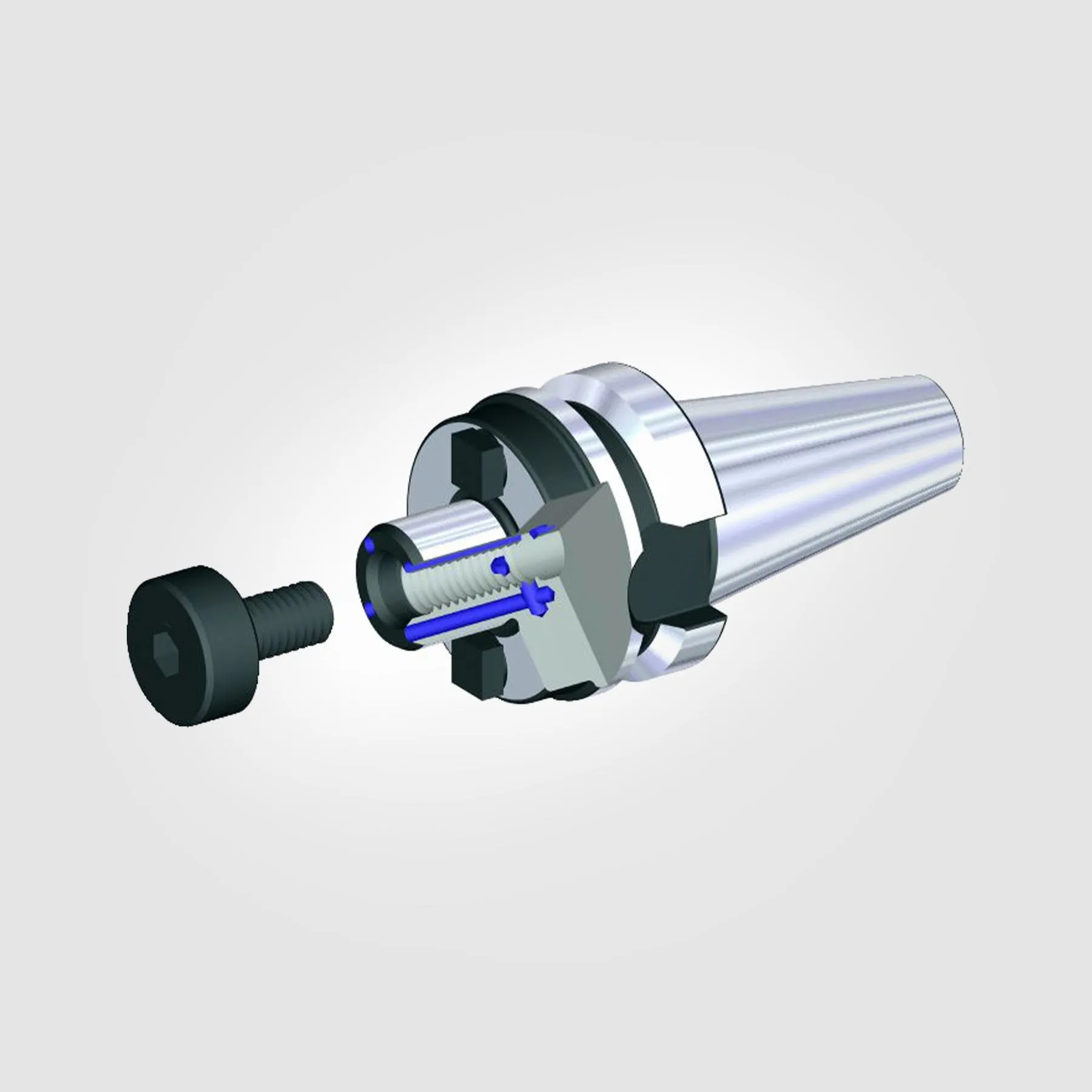

BT30 Steep Taper 1" Shell Mill Adapter (THROUGH COOLANT) 3648653

• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

• Adapter Type: Steep Taper
• System Size: BT30

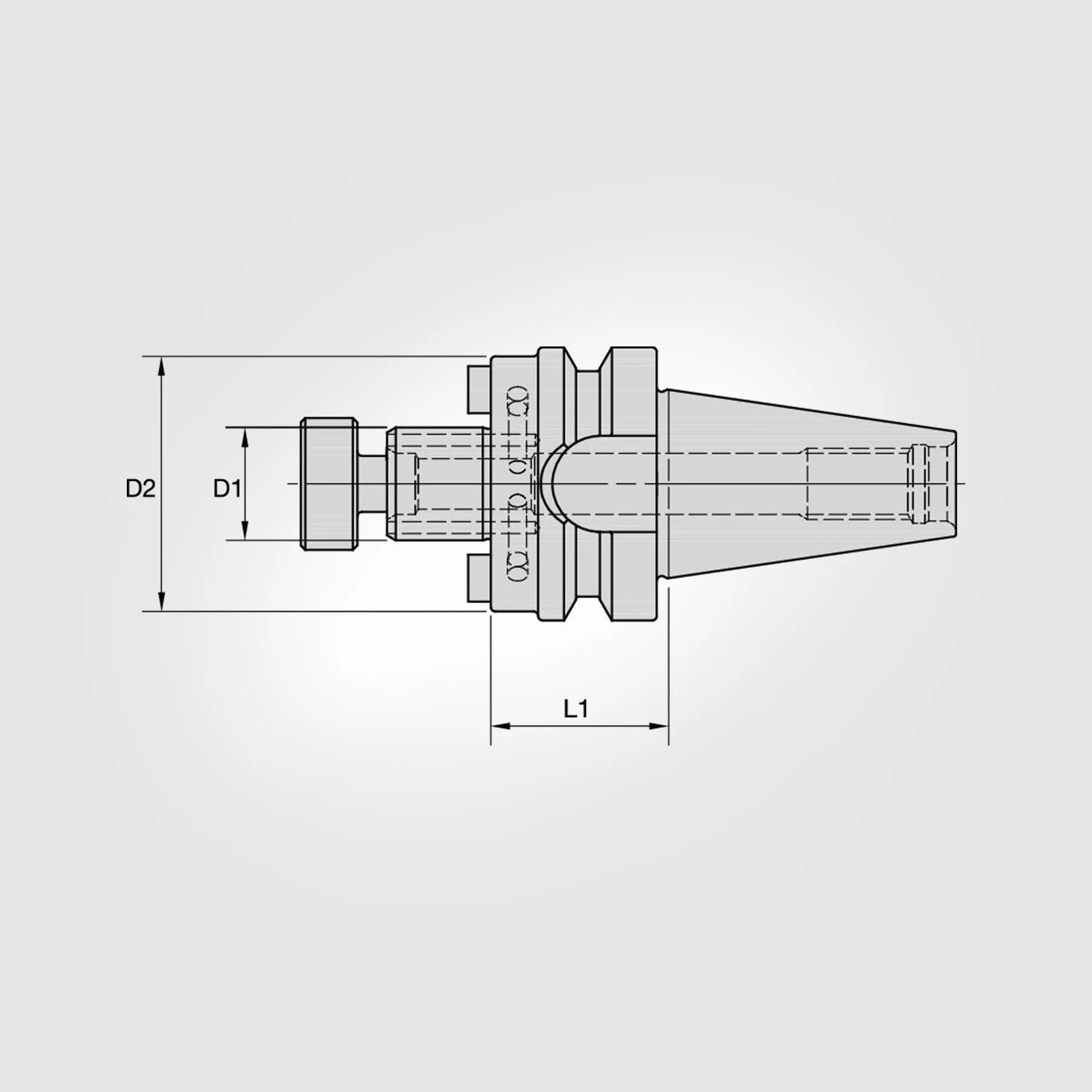

• [D1] Adapter Diameter (Inch): 1.000"
• [D1] Adapter Diameter (Metric): 25.400mm
• [D2] Body Diameter (Inch): 2.190"
• [D2] Body Diameter (Metric): 55.600mm
• [L1] Gage Length (Inch): 1.770"
• [L1] Gage Length (Metric): 44.958mm
• [L] Overall Length (Inch): 4.364"
• [L] Overall Length (Metric): 110.840mm
• [L2] Usable Length (Inch): 0.690"
• [L2] Usable Length (Metric): 17.500mm
• Through Coolant: Yes
• Coolant Entry Style: Concentric Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
